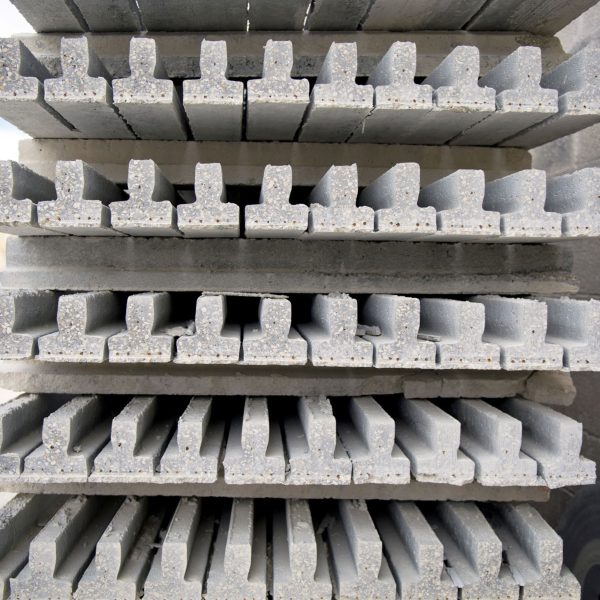

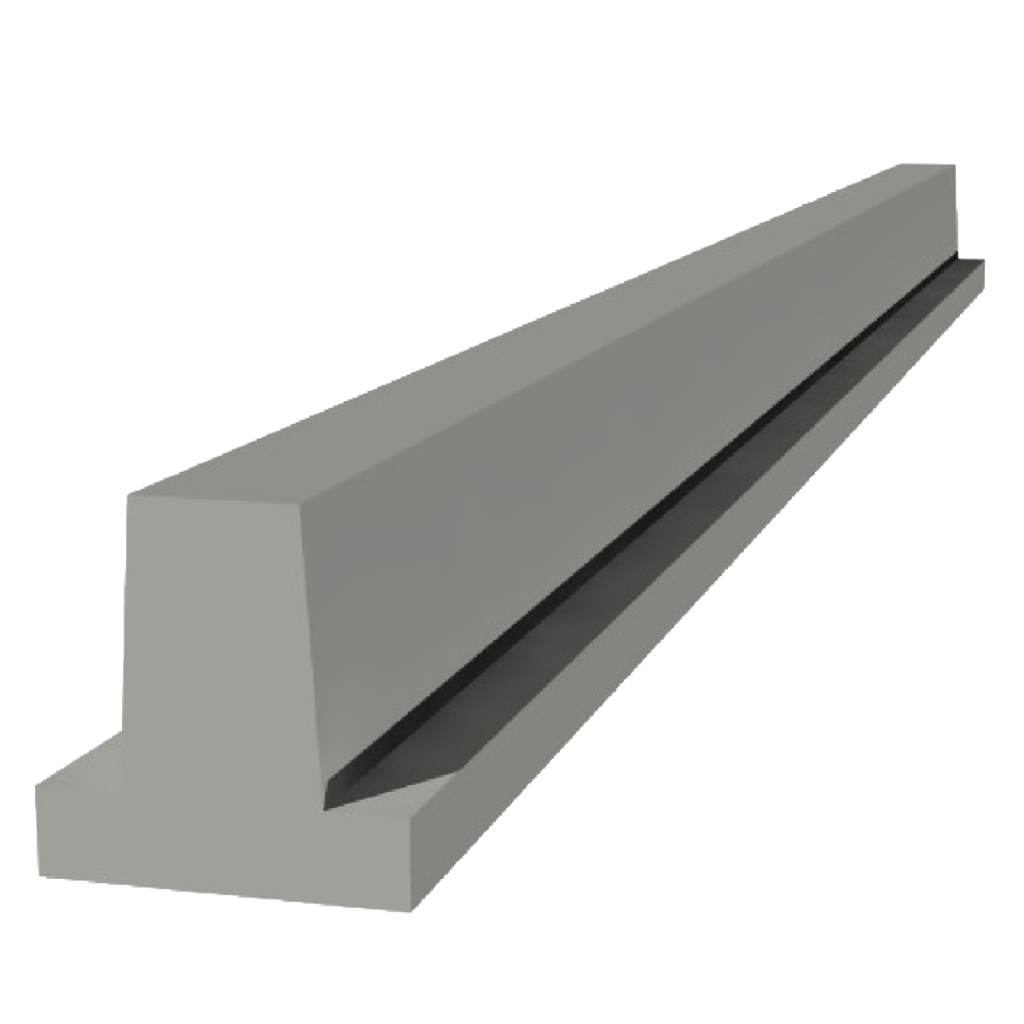

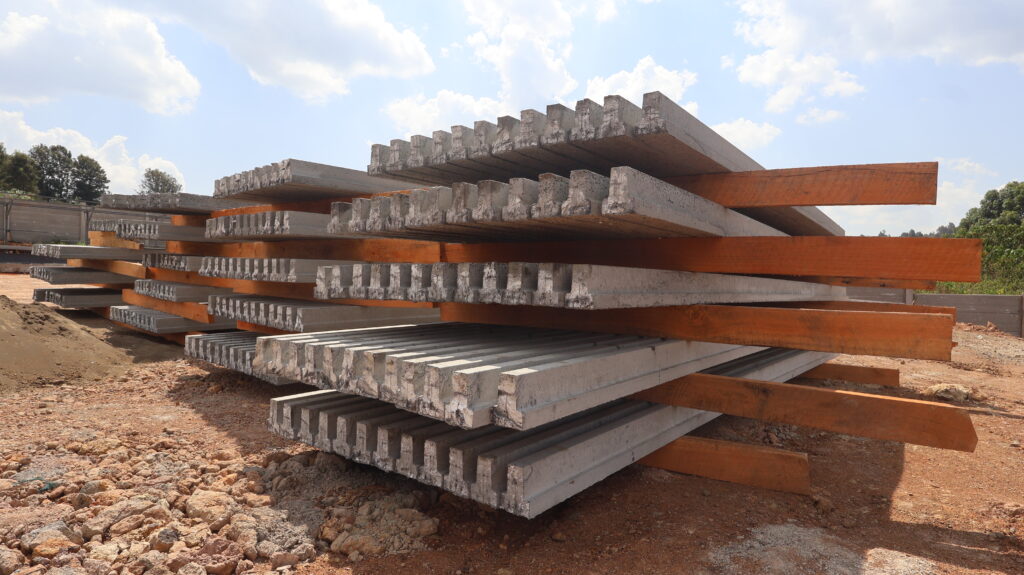

Precast T-Beams (150mm deep)
Our precast T-beams are manufactured in accordance with BS EN 15037-1:2008 (Part 1), ensuring consistent quality, structural reliability, and dimensional precision. Each beam is produced using high-strength concrete (approximately 60 N/mm²) and reinforced with 5 mm diameter indented high-tensile wires with a characteristic tensile strength of approximately 1800 N/mm².
These high-strength reinforcement wires provide excellent anchorage, improved crack control, and enhanced load-carrying efficiency. Every beam is individually designed to meet the specific span and loading demands of its project.
Key Advantages of Our 150mm deep T-Beams:
- High ultimate load capacity
- Reduced deflection and cracking
- Optimized performance when used with lightweight infill blocks
- Fast, clean, and safe installation
- Consistent factory-controlled curing and dimensions
These weights are achieved through a refined mix design using fine aggregates and pumice, reducing dead load while maintaining required compressive strength.
Application
The precast T beam and Block flooring system is ideal for a variety of flooring applications due it’s lightweight and flexible nature while not compromising on strength and durability all at a budget friendly cost.
- Multiple storey structures: The precast flooring system is used for multiple storey and high rise structures these include: Maisonettes, Flats and Apartment blocks, High traffic commercial developments like schools, malls and shopping complexes.
- Suspended foundation Concept: The Beam and block flooring system is efficient and ideal for suspended foundations done mostly in areas with deep running black cotton soil, eliminating the traditional need for mass excavations and backfilling procedures which are often costly.
